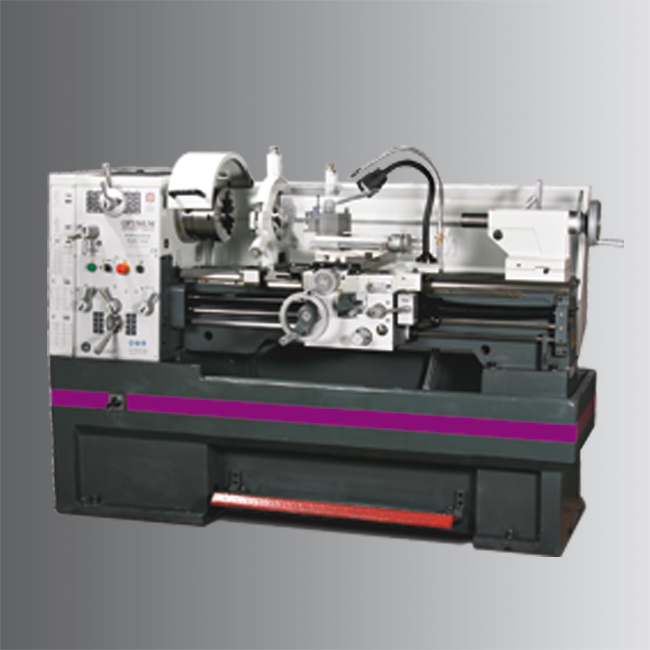

Type |
LD 420 x 1000 |
LD 420 x 1500 |
|
Item No |
P3401160 |
P3401165 |
|
Type |
D 420 x 1000 DPA |
D 420 x 1500 DPA |
|
Item No |
340 1160DPA |
340 1165DPA |
|
Machine datas |
|
|
|
Electrical connection |
400 V / 3 Ph ~50 Hz |
|
Total connected value |
4.5 kW |
|
Coolant equipment |
100 W |
|
Working areas |
|
|
|
Centre height |
210 mm |
|
Centre width |
1'000 mm |
1'500 mm |
|
Turning Ø over lathe bed |
420 mm |
|
Turning Ø over cross slide |
250 mm |
|
Turning Ø in the bed bridge |
590 mm |
|
Length of bed bridge |
260 mm |
|
Bed width |
250 mm |
|
Speeds |
|
|
|
Spindle speed |
45 - 1'800 min-1 |
|
Number of steps |
16 steps |
|
Headstock |
|
|
|
Spindle taper |
MT 6 |
|
Spindle seat |
Camlock DIN ISO 702-2 Nr. 6 |
|
Spindle drilling, rod passage |
Ø 52 mm |
|
Slide |
|
|
|
Travel top slide |
140 mm |
|
Travel cross slide |
230 mm |
|
Longitudinal feed in the range of |
0.05 - 1.7 mm/rev; 17 feeds |
|
Transverse feed in the range of |
0.025 - 0.85 mm/rev;17 feeds |
|
Pitch - Metric in the range of |
0.2 - 14 mm/rec;39 thread pitches |
|
Pitch - Inch in the range of |
72 - 2 threads/1“;45 thread pitches |
|
Trapezoid thread in the range of |
8 - 44;21 trapezoid thread |
|
Modular thread in the range of |
0.3 - 3.5;18 modular thread |
|
Quadruple tool holder seat height |
Max. 20 x 20 mm |
|
Tailstock |
|
|
|
Tailstock seat |
MT 4 |
|
Tailstock - sleeve travel |
120 mm |
|
Dimensions |
|
|
|
Length |
2,025 mm |
2,525 mm |
|
Width x Height |
915 x 1'375 (DPA 1'615) mm |
|
Net weight |
1,550 kg |
1,800 kg |
