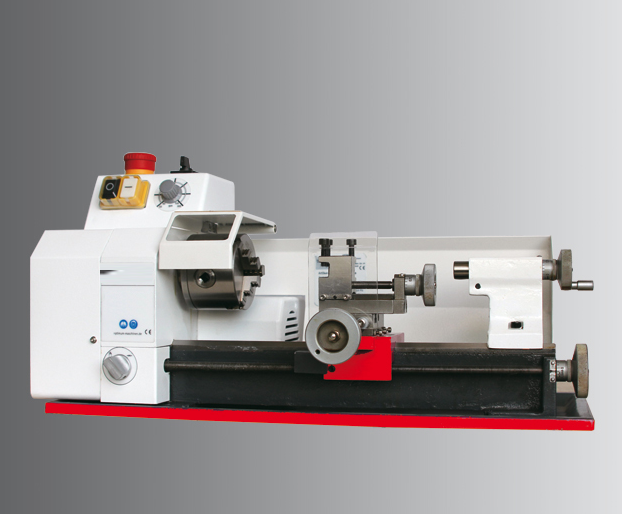

传真：022-23307114ZN-140V型 小型车床
| 型号 | Model | ZN-140V |
| 产品编号 | Code No. | PX4114000 |
| 加工范围 | Capacity | |
| 床身上*大回转直径 | Swing over bed | ø140mm |
| 拖板上*大回转直径 | Swing over cross slide | ø78 mm |
| 两顶尖中心距 | Admits between | 250mm |
| 主轴中心高 | Center height | 70mm |
| 床身宽度 | Width of bed | 70mm |
| 主轴 | HEADSTOCK | |
| 主轴通孔直径 | Spindle bore | ø11mm |
| 主轴内孔锥度 | Taper of spindle bore | MT1 |
| 主轴转速范围 | Range of spindle speed | 150-3000 rpm |
| 进给及螺纹 | FEEDS AND THREADS | |
| 小拖板*大纵向行程 | Compound rest travel | 40mm |
| 中拖板*大横向行程 | Cross slide travel | 55mm |
| 车刀刀杆*大截面 | Max.Section of tool | 8×8 mm |
| 公制螺纹范围 | Threads metric pitches | 0.5-1mm |
| 英制螺纹范围 | Threads imperial pitches | 5-15TPI |
| 尾座 | TAILSTOCK | |
| 尾座套筒直径 | Quill diameter | ø18mm |
| 尾座套筒行程 | Quill travel | 50mm |
| 尾座套筒内孔锥度 | Quill taper | MT1 |
| 电机 | MOTOR | |
| 主电机功率 | Main motor power | 230V or 110V/ 350W |
| 外形尺寸及重量 | DIMENSION AND WEIGHT | |
| 外形尺寸（长×宽×高） | Overall dimension(L×W×H) | 550×255×280mm |
| 包装箱尺寸（长×宽×高） | Packing size(L×W×H) | 720×415×345mm |
| 净重/毛重 | Net weight/Gross weight | 23/26kg |
