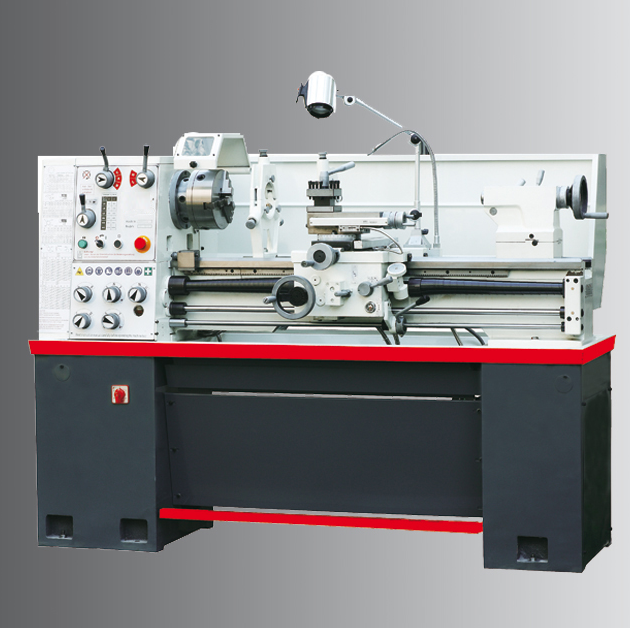

传真：022-23307114ZN-IO400型 车床
| 型号 | Model | ZN-IO400x1000 |
| 产品编号 | Code No. | PX4240300 |
| 两顶尖中心距 | Distance between centers | 1000mm |
| 主轴中心高 | Center height | 200mm |
| 床身上*大回转直径 | Swing over bed | ø400mm |
| 马鞍上*大回转直径 | Swing over gap | ø506mm |
| 拖板上*大工件回转直径 | Swing over cross slide | ø240mm |
| 床身宽度 | Bed width | 210mm |
| 主轴通孔直径 | Spindle bore | ø52mm |
| 主轴端部 | Spindle nose fixture | DIN55029,D1-5 |
| 主轴转速 | Speed range | (12)45-2000rpm |
| 公制螺纹范围 | Metric thread | (36)0.8-14mm |
| 英制螺纹范围 | Inch thread | (30)2-28TPI |
| 尾座套筒直径 | Diameter of tailstock sleeve | ø45mm |
| 尾座套筒行程 | Travel of tailstock sleeve | 100mm |
| 尾座套筒锥度 | Taper of tailstock sleeve | MT4 |
| 电机功率 | Motor power | 2.4kw/2.0kw |
| 包装尺寸 | Packing size | 1930x760x1540mm |
| 净重/毛重 | N.W./G.W. | 820/860kg |
